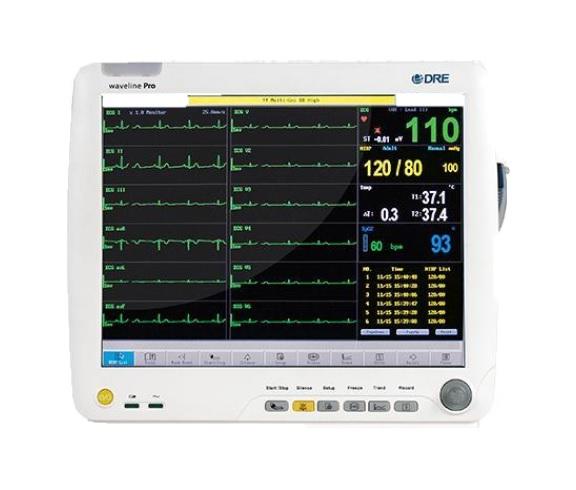

DRE Waveline Pro Multi-function Veterinary Monitor

Superior flexibility and performance with a premium flat panel display is found in DRE's newest version of the Waveline monitor series. The DRE Waveline Pro can be used on small, medium, or large animals. An applicable monitor for veterinary surgical suites and research facilities — Now with Masimo SET Pulse Oximetry!

The DRE Waveline Pro displays as many as eight colorful waveforms on a crisp 15” high resolution display. It is lightweight, portable and measures multiple parameters, including ECG (3 or 5 lead) with ST segment monitoring, resp., dual temp., Masimo SpO2 and NIBP. Configurations are available that measure capnography, dual channel IBP, and anesthetic agents (five agents, Auto ID, N2O, FiO2 and Sidestream EtCO2), and that have a built-in thermal printer.

Multiple Configurations Available:

• Standard Parameters: ECG, Masimo Pulse Oximetry, 2 x Temperature, NIBP, Respiration, and Printer
• Optional Parameters: Invasive Blood Pressures, CO2 (Mainstream or Sidestream) and Drager Built-in Anesthetic Agent Module
• Comes with standard veterinary accessories

Physical Dimensions & Weight:

• Base Unit: 12.1”/309 mm (H) x 14.4”/365 mm (W) x 6.3”/159 mm (D)
• Weight: 17.6 lbs/8.0 kgs (including anesthetic agents module and batteries)

Application:

• Small, Medium, and Large animal

Performance Specifications:

• Display: 15” color TFT, Resolution 1024 x 768
• Trace: 8 waveforms
• Indicators:
  • Alarm indicator
  • Power indicator
  • QRS beep and alarm sound
• Trend time: 1 – 48 hours
• Recorder:
  • Built-in, thermal array, 2 channels
  • Record width: 1.9”/48 mm
  • Recorder paper: 2”/50 mm
  • Record speed: 25 mm/s, 50 mm/s

For Full Detailed Specifications including ECG, RESP, Temperature, SPO2, NIBP & Accuracy, IBP, ETCO2 & Accuracy, Anesthetic Agents, and Power, please see this page:

SPECIFICATIONS FOR DRE WAVELINE PRO MULTI-FUNCTION VETERINARY MONITOR
