DRE Waveline EZ Portable Veterinary Monitor
Vet-approved
Dual function
Premium build
Easy returns
Product details
Description

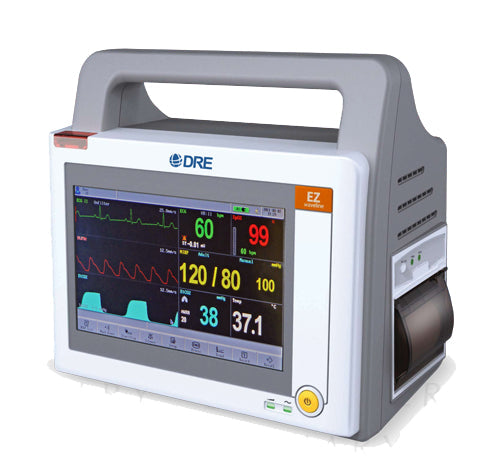

Portable patient monitor with a user-friendly touch-screen — Now with Masimo SET Pulse Oximetry!
Featuring cutting-edge innovations and impeccable craftsmanship, the DRE Waveline EZ patient monitor is the perfect choice for healthcare professionals who demand precision, performance and affordability. It features an intuitive touchscreen that helps you quickly and accurately evaluate patient conditions, resulting in better patient care. Utilize the Waveline EZ to monitor ECG, respiration, SpO2, NIBP and temperature. It’s also available with EtCO2 monitoring and a printer (contact us for availability).
Key Features:
- Touch-screen provides immediate operation
- Simultaneous multi-lead ECG monitoring
- Masimo SET® Pulse Oximetry — ask your DRE representative for details
- Advanced ST and arrhythmia detection
- Graphical and tabular trending
- Displays three waveforms
- Battery backup
- Audible and visual alarms
- Quick BP readings recall
SPECIFICATIONS
Physical Dimensions:
- Size: 6 lbs
- Dimensions: 10x8x4 (w x h x d)
Safety Approval & Quality System:
- Designed to meet IEC60601-1-1988, EN60601-1-1, EN60601-2
- Class II Equipment, double insulated
- Type BF applied parts
- ISO9001 & EN46001 Certified
Power Requirements:
- Power Supply: AC 90-264V/47-63Hz
- Input Power: ≤55VA
- Fuses: Two fuse sockets in the rear panel indicated by “FUSE”, OI 5X20, 2A/250V
- Battery: 12V/4.0AH sealed lead-acid
- Charge time: ≥4 hours
- Operating time: ≥2 hours (full recharge)
- Battery Charging Method: Automatic charging after monitor is connected to AC power supply (with charge protection function)
- Discharge Protection: When powered by battery, the monitor will be automatically turned off when battery power is almost used up
For Full Detailed Specifications including ECG, RESP, SPO2, NIBP, TEMP, CO2, and other documents please see this page:
SPECIFICATIONS FOR DRE WAVELINE EZ PORTABLE VETERINARY MONITOR
