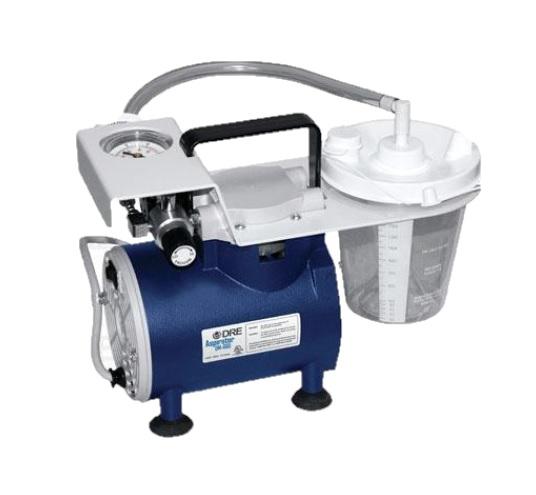

DRE DM-660 Aspirator

The power and performance you need

High performance 1/5 horsepower pump delivers 0 - 26 inHg (0 - 660 mmHg) — among the highest in the industry.

Key Features

• Protected: Dual protection system with a float shut-off in the canister lid and an Inline Hydrophobic Filter to prevent back flow of fluid as well as airborne contaminants from entering the pump.
• High durability: Features a protective canister bracket that holds the canister and protects the gauge and adjustment knob from accidents.
• Convenient: Features a Velco™ strap that allows you to wrap the power cord for improved portability. Extra strength premium suction feet safely and securely attach the unit to most surfaces, preventing spillage.
• Safe: Automatic resetting thermal limit switch prevents the unit from overheating.

Dimensions

• Length: 13.25” (33.7 cm)
• Width: 8” (20.3 cm)
• Height: 9.75” (24.8 cm)
• Weight: 12.6 lbs. (5.7 kg)

Shipping Weight:

• 14.5 lbs. (6.6 kg)

Motor:

• 120 VAC, 60 Hz, 5 Amps

Vacuum Range:

• 0 - 26 inHg

Horsepower:

• 1/5

Operating Temp. Range:

• 50 degrees F to 104 degrees F (10 degrees C to 40 degrees C)

Storage Conditions:

• Temp.: -4 degrees F to 104 degrees (-20 degrees to 40 degrees C)
• Humidity: Max 95% non-condensing
